ProductNexans specification
Preferential use
- For tunnel applications and all communication services for areas without radio-connections
Key-points
- Adapted for Polycom application
- Low losses
- Transmission in frequency bands up to 960 MHz
- Radiating caracteristic practically insensitive to environmental conditions
- Very strong construction
- Conform to :
- CEI 60754-1 halogenfree - CEI 60754-2 no corrosive gaz emission - CEI 61034 low smoke emission - CEI 60332-1 flame retardant - CEI 60332-3/C self-extinguishing

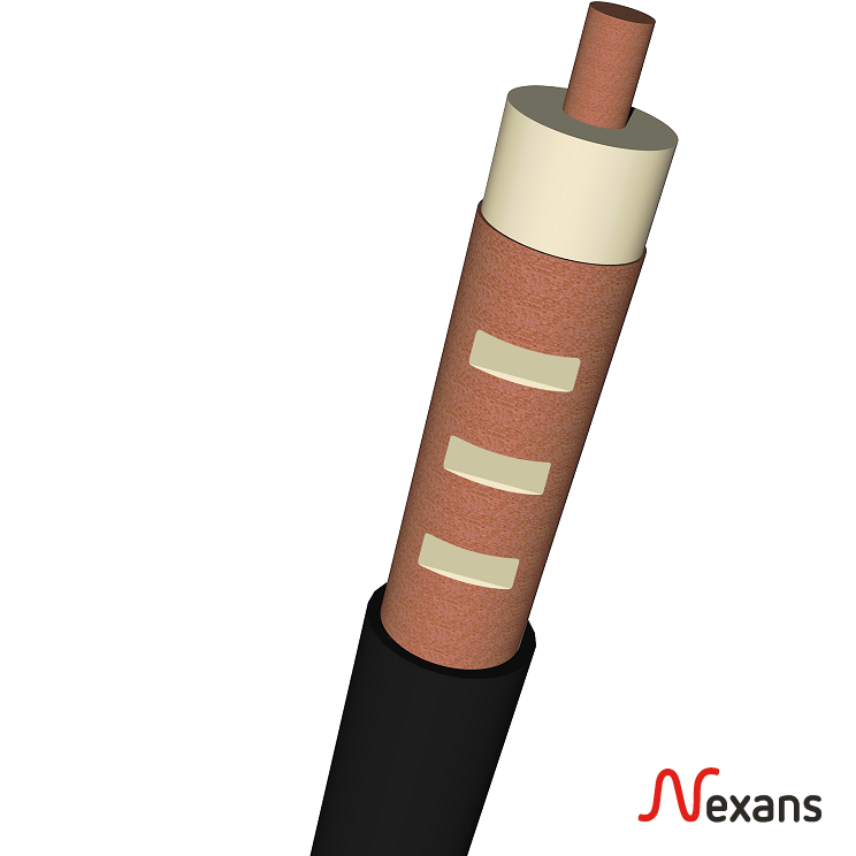

- CEI 60331 not short-cicuit during 30 min Cable construction
- Central conductor, copper layed aluminium
- Foamed polyethylen dielectric
- Outer conductor with copper or aluminium tape with radiating holes
- HFFR polyethylen outer sheath, black with metering and
Indication of slot alignement with guide over the slots
Other versions on request
- According to specific needs (for example: self suspended)
Remarks filoradio
- All electricals values are given at 20°C
- Coupling loss and longitudinal loss are mesured by the free space methode according to IEC 61196-4 cable high = 2m / cable-antenna distance = 2m / dipole-antenna λ/4
- Coupling loss values given in brackets are average values of all three spacial orintations of dipole antenna (radial, parallèle et orthogonal)
- As with any radating cable, the performance in tunnel or building environments may deviate from figures ed on free space methode.
- Coupling loss values are given with a tolerabce of +/- 5dB
- Longitudianal loss values are given with a tolerabce of +/- 5%
Stop band Filoradio RL-L
CAUTION:
The cable cannot be used at stop band frequency of 60+/-5 MHz
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Central conductor diameter
5.70 mm
Diameter over insulation
23.5 mm
Electrical characteristics
Electrical characteristics
Characteristic impedance
75 +/-2 Ohm
