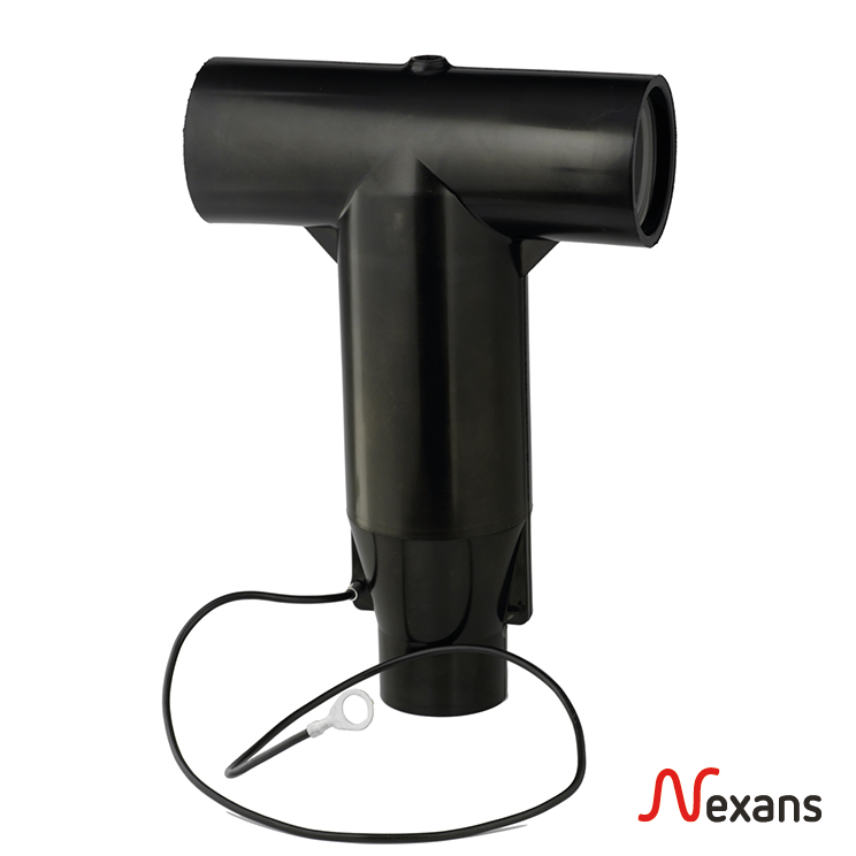

Nexans 440TB Tee connector

Products

AMV-C-K440TBG-27/240-300S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 28.5 ... 37.5 mm
  • Conductor cross-section, range: 240 ... 300 mm²



AMV-C-K440TBG-32/400-500S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 34 ... 42.5 mm
  • Conductor cross-section, range: 400 ... 500 mm²



AMV-C-K440TBG-37/630S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 39 ... 48.5 mm
  • Conductor cross-section, range: 630 ... 630 mm²



AMV-C-M440TBG-27/095-240S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 28.5 ... 37.5 mm
  • Conductor cross-section, range: 95 ... 240 mm²



AMV-C-M440TBG-32/300-400S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 34 ... 42.5 mm
  • Conductor cross-section, range: 300 ... 400 mm²



AMV-C-M440TBG-37/500-630S(3)

Nexans ref.

  • Packaging: Set (Kit)
  • Diameter over insulation, range: 39 ... 48.5 mm
  • Conductor cross-section, range: 500 ... 630 mm²



Description

Description

Standards

  • Product
    CENELEC EN 50180
  • Test
    CENELEC HD 629.1
  • International
    IEC 60137

Delivery

Prefabricated, factory-tested end closure body with integrated field control and thick-walled, conductive outer jacket. Conductor contact, cable adapter, assembly aid and assembly instructions


When ordering, specify:

  • Type of cable
  • Diameter over insulation
  • Screen construction, desired shield connection
  • Conductor cross-section, material and class


To be ordered separately:

  • Earth connection for ribbon or shielded cables
  • Fixing Bride
  • Distribution cap for three-conductor cable



Packaging Unit: Set of 3 pcs

AMV-440TB-G

Characteristics

Characteristics

Resources

Resources

Selling & delivery Information

Packaging Unit: Set of 3 pcs
