AMV-M-MAK24.3/1X240-400S(3)
AMV-M-MAK24.3/1X240-400S(3)
Single core straight joint for copper wire screened polymeric cable 24 kV with copper or aluminum conductor 240…400 mm2
Read more- Nexans ref. : 10227957
Description
Description
Standards
-
TestHD 629.1 S2
Application
- To connect single core polymeric cables, aerial or underground
- For cables with copper or aluminium conductor
Technical description
- Extruded joint body
- Extruded protection sheath
- Cable lugs with large usage range for copper and aluminium conductor
- Semiconductive watertight putty
- Metallic screen
Remarks
- Premounted joint, factory tested
- Cable lugs for conductors and screens
- Multi-lingual mounting instructions
Characteristics
- Compact joint with short overall length
- Low space requirements for installation
- Easy installation
- No specific tools required
AMV-M-MK
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Screen
Copper wires / 6mm²
Insulation
Synthetic
Technology
Cold shrink
Number of conductors
1
Type of cable
Single core XKDT, XDCuT
Dimensional characteristics
Dimensional characteristics

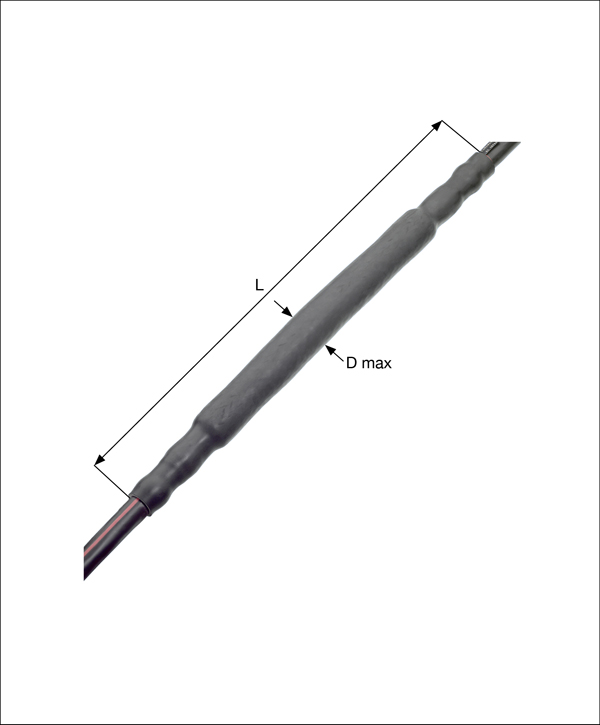

Maximum outer diameter
69.0 mm
Length "L"
850.0 mm
Diameter over insulation, range
30 ... 54 mm
Approximate weight per set
10 kg
Conductor cross-section, range
240 ... 400 mm²
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Impulse voltage
125 kV
Dielectric withstand voltage, 50Hz 1mn
55 kV
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor, Underground
Ambient installation temperature, range
5 ... 40 °C
Voltage Class
24 kV
Packaging
3 pieces set
