AMV-J-AIS24.2/095-240SM12(3)
Description
Description
Standards
-
TestEN 61442; HD 629.1 S2
AMV-J-AIS
Cable lug for termination AIN
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Technology
Slip-0n
Type of conductor
Circular or sector-shaped, solid or stranded
Conductor material
Copper or Aluminum
Insulation
Silicone
Type of bolt
Multiple shear-off-head bolt
Screen
Copper wire

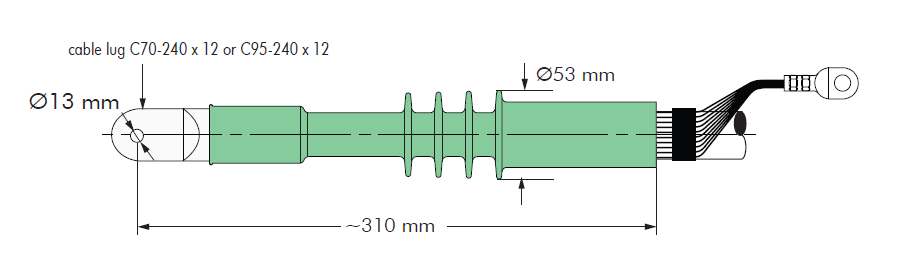

Dimensional characteristics
Dimensional characteristics
Diameter over insulation, range
20.9 ... 35 mm
Conductor cross-section, range
95 ... 240 mm²
Length "L"
270.0 mm
Number of sheds
4
Approximate weight per set
2.5 kg
Diameter of bolt
- mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Maximum operating voltage
24 kV
Impulse voltage
125 kV
Nominal leakage path
270 mm
Usage characteristics
Usage characteristics
Field of application
Indoor
Packaging
3 pieces set
