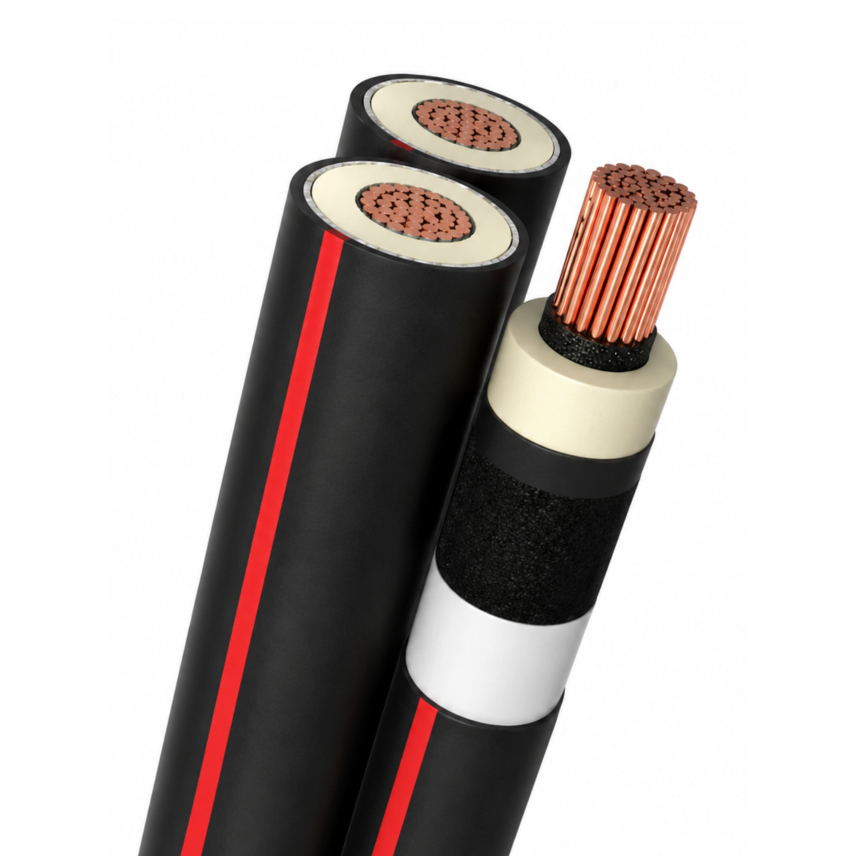

Nexans XDALT-Y XLPE insulated MV cable

Applications

• Underground distribution networks
• Pipe laying and ground laying
• Installation in electrical substations

Construction

• Round copper or aluminium conductor
• Extruded inner conductor
• Cross-linked PE insulation (XLPE)
• Extruded outer semi-conductor
• Semi-conductive swelling tape
• Laminated aluminium tape screen
• Black PE outer sheath, with 2 red longitudinal stripes
• Three-pole construction:
• Assembly of three monopolar cables

Properties

• Longitudinal sealing by two layers of tape, which swell in the presence of moisture and prevent the spread of water in the event of an injury to the sheath
• Radial sealing by means of laminated aluminium tape
• Special abrasion resistant PE outer jacket with low shrinkage rate
• Cross-linked PE insulation (XLPE) with high dielectric strength and low losses
• Halogen free
