XKDT 1x 25 Cu/10 mm² 12/20 kV
XKDT 1x 25 Cu/10 mm² 12/20 kV
Medium voltage 20 kV single-core cables with cross-linked PE insulation (XLPE) and copper-wire screen.
Read more- Nexans ref. : 10152573
- EAN : 7611755050689
Description
Description
Standards
-
ProductHD 620 S2 P10N; IEC 60228 Class 2 ; IEC 60502
Applications
- Underground distribution networks
- Pipe laying and ground laying
- Installation in electrical substations

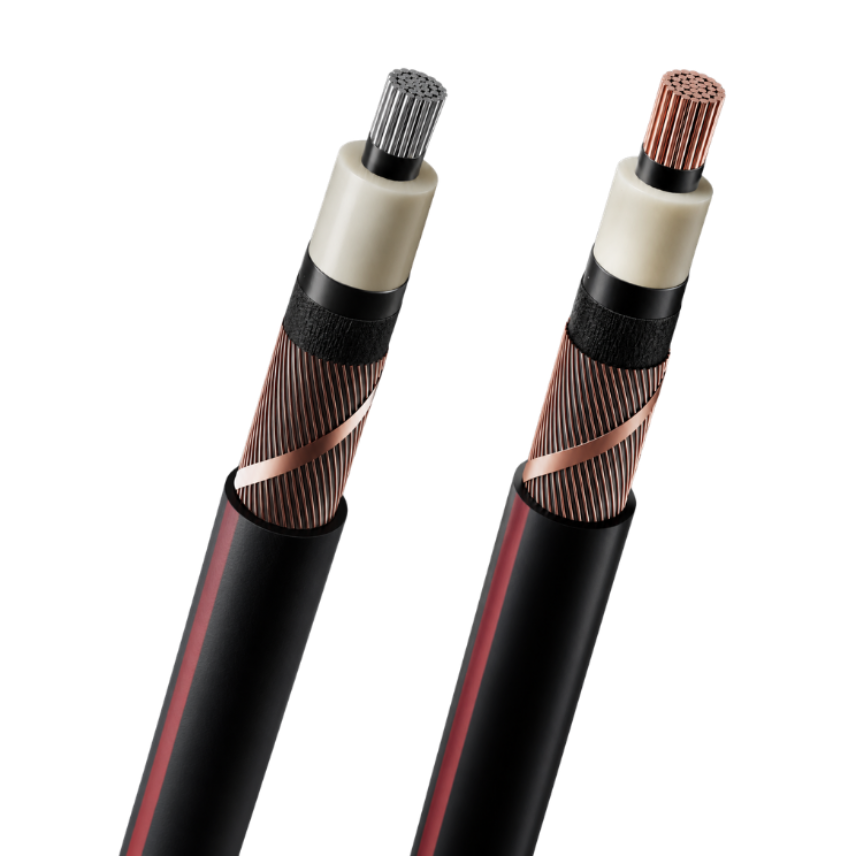

Construction
- Round copper or aluminium conductor
- Extruded inner conductor
- Cross-linked PE insulation (XLPE)
- Extruded outer semi-conductor
- Semi-conductive swelling tape
- SZ concentric copper wire screen
- Swelling tape
- Black PE outer sheath, with 2 red longitudinal lines
Properties
- Longitudinal sealing by two layers of tapes which swell in the presence of moisture and prevent the spread of water in the event of a damage to the sheath
- Outer jacket made of specially abrasion-resistant PE with a low shrinkage rate
- Cross-linked PE insulation (XLPE) with high dielectric strength and low losses
- Halogen-free
admissible load MV cables
Currents are indicative and given for normal service conditions.
- Permanent charge 24h at 100% LF =1.0
- Conductor temperature 90 ° C
For cable laid in earth in tubes
- Depth of laying in soil : 1.0 m
- Max. soil temperatureempérature : 20 °C
- Soil thermal resistivity: 1.0 °C m/W
For cables placed in the open air
- Max. air temperature : 30 °C
- Protected from direct sunlight
- laid on consoles or cable trays
Grounding:
-
at one end, in this case the induced voltage increases proportionally with the length of the
the link.Attention, too high induced voltage can cause a breakdown of the outer sheath during overvoltages
transient. -
Either at both ends, which generates circulating currents and therefore more or less acceptable losses..
Correction factor
If the terms of service differ from those set out above, allowable currents must be corrected
taking into account all the correction factors that apply to the installation and service conditions encountered.
Main factors to consider are the following:
- Variable load, factor taking into account variable load, 10h to 100% and 14h to 60% LF= 0.627
- Operating temperature
- Ambient Temperature
- Thermal soil resistivity, factor taking into account the thermal resistivity of the soil in [°C * m / W]
- Magnetic armor
Our engineers are at your disposal to help and advise you.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Copper
Conductor shape
Round compacted
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
25 mm²
Conductor diameter
6.0 mm
Average insulation thickness
4.8 mm
Diameter over insulation
16.6 mm
Screen section
10 mm²
Diameter over external conductor / metallic screen
19.8 mm
Average sheath thickness
1.8 mm
Nominal outer diameter
23.7 mm
Approximate weight
66.1 kg/100m
Number of cores
1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12/20 kV
Maximum operating voltage
24 kV
Max. DC resistance of the conductor at 20°C
0.727 Ohm/km
I max. @ 60°C-buried, flat, spaced, earthing 1pt, LF1
122 A
I max. @ 60°C-buried, flat, spaced, earthing 2pts, LF1
121 A
I max. @ 90°C-buried, flat, spaced, earthing 1pt, LF1
156 A
I max. @ 90°C-buried, flat, spaced, earthing 2pts, LF1
155 A
I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF1
105.9 A
I max. @ 60°C-buried, trefoil, joined, earthing 2pts, LF1
107 A
I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF1
136 A
I max. @ 90°C-buried, trefoil, joined, earthing 2pts, LF1
139 A
I max. @ 60°C-in the air inside, flat, spaced, earthing 1pt, LF1
131.3 A
I max. @ 60°C-in the air inside, flat, spaced, earthing 2pts, LF1
140 A
I max. @ 90°C-in the air inside, flat, spaced, earthing 1pt, LF1
186.1 A
I max. @ 90°C-in the air inside, flat, spaced, earthing 2pts, LF1
197 A
I max. @ 60°C-in the air inside, trefoil, joined, earthing 1pt, LF1
118 A
I max. @ 60°C-in the air inside, trefoil, joined, earthing 2pts, LF1
118 A
I max. @ 90°C-in the air inside, trefoil, joined, earthing 1pt, LF1
168 A
I max. @ 90°C-in the air inside, trefoil, joined, earthing 2pts, LF1
168 A
Permissible short circuit current conductor 0.5s
5.2 kA
Permissible short circuit current conductor 1s
3.7 kA
Permissible short circuit current screen 0.5s
2.1 kA
Permissible short circuit current screen 1s
1.5 kA
A.C. Conductor resist. 50Hz and at 90 °C
0.927 Ohm/km
Nominal phase capacitance
0.169 µF / km
Nominal inductance
0.47 mH/km
Phase reactance 50 Hz - trefoil formation
0.148 Ohm/km
Impedance at 50Hz and 90°C
0.85 Ohm/km
I max. @ 60°C-buried, trefoil, joined, earthing 1pt, LF0.627
112.5 A
I max. @ 90°C-buried, trefoil, joined, earthing 1pt, LF0.627
144.7 A
Mechanical characteristics
Mechanical characteristics
Maximum pulling force by laying
1.5 kN
Usage characteristics
Usage characteristics
Minimum installation temperature
-5 °C
Bending factor when laying
15 (xD)
Bending factor when installed
9 (xD)
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Resources
Resources
Documentation
Accessories - XKDT 1x25 10 Cu
pdf — 134.5 kB
Declaration of Performance
- Declaration of Performance n� : 1000393-CHCD
- Certification Date : 3/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 4
- Declared performance : Fca
