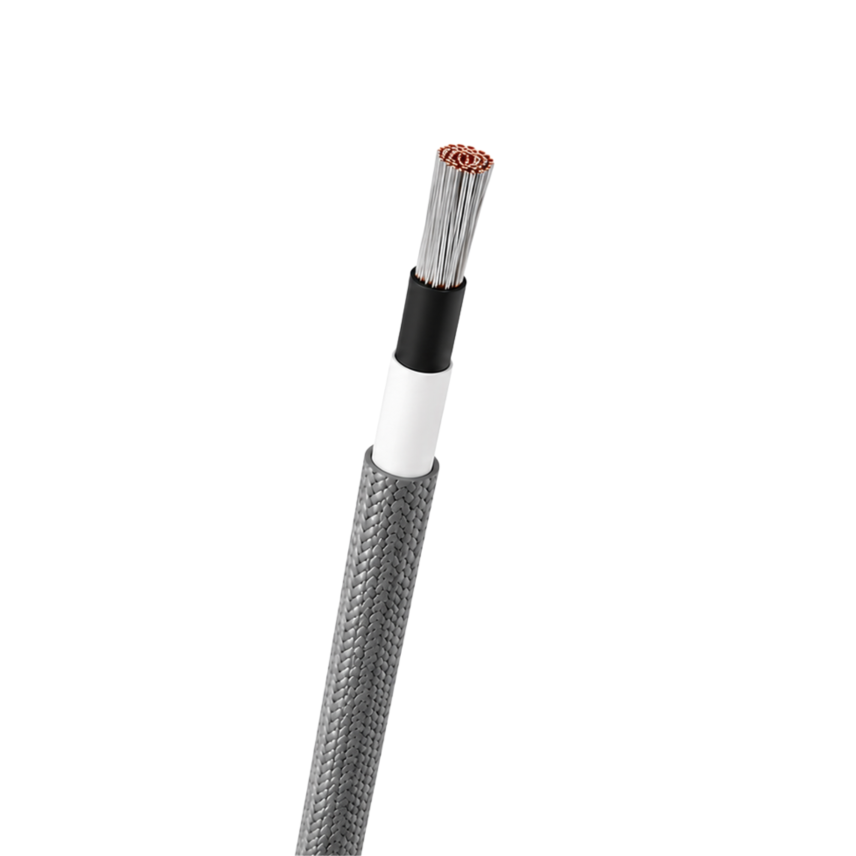

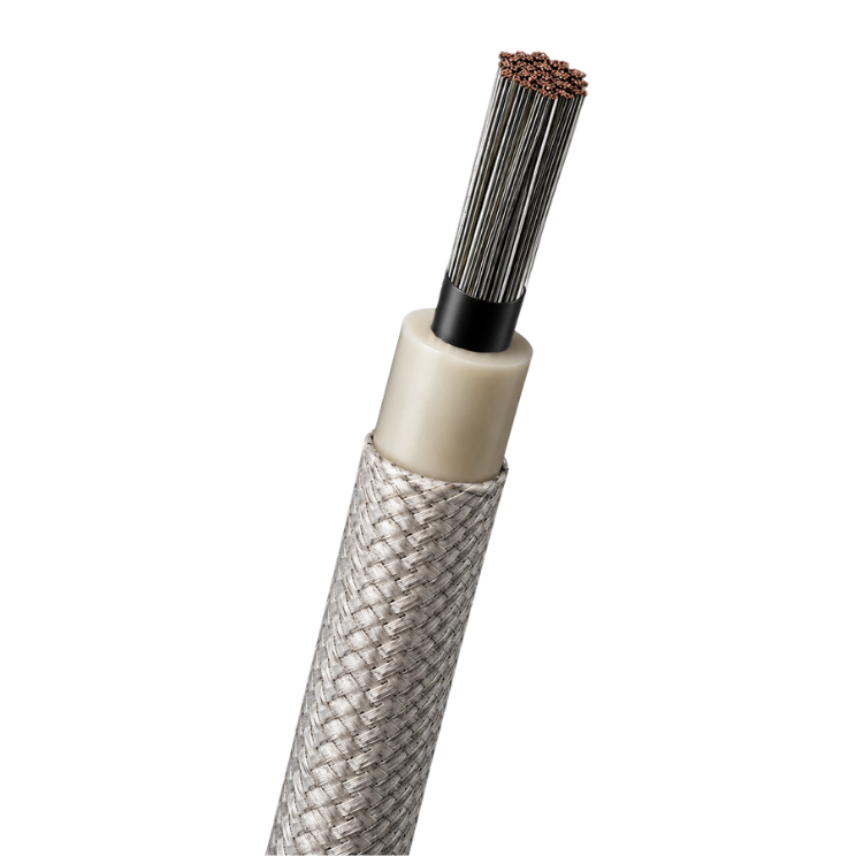

Nexans SIWO-KUL® B20 6.6 / 7.2 kV

Products

SIWO-KUL B20 1x16 6,6/7,2 kV GY

Nexans ref. 10503819

  • Packaging: Cut to length (m)
  • Conductor cross-section: 16 mm²
  • Nominal outer diameter: 11.45 mm



SIWO-KUL B20 1x25 6,6/7,2 kV GY

Nexans ref. 10202349

  • Packaging: Cut to length (m)
  • Conductor cross-section: 25 mm²
  • Nominal outer diameter: 13.1 mm



SIWO-KUL B20 1x35 6,6/7,2 kV GY

Nexans ref. 10195599

  • Packaging: Cut to length (m)
  • Conductor cross-section: 35 mm²
  • Nominal outer diameter: 14.3 mm



SIWO-KUL B20 1x50 6,6/7,2 kV GY

Nexans ref. 10202347

  • Packaging: Cut to length (m)
  • Conductor cross-section: 50 mm²
  • Nominal outer diameter: 16.5 mm



SIWO-KUL B20 1x70 6,6/7,2 kV GY

Nexans ref. 10202348

  • Packaging: Cut to length (m)
  • Conductor cross-section: 70 mm²
  • Nominal outer diameter: 18.35 mm



SIWO-KUL B20 1x95 6,6/7,2 kV GY

Nexans ref. 10549487

  • Packaging: Cut to length (m)
  • Conductor cross-section: 95 mm²
  • Nominal outer diameter: 20.1 mm



SIWO-KUL B20 1x120 6,6/7,2 kV GY

Nexans ref. 10512325

  • Packaging: Cut to length (m)
  • Conductor cross-section: 120 mm²
  • Nominal outer diameter: 21.95 mm



SIWO-KUL B20 1x150 6,6/7,2 kV GY

Nexans ref. 10503820

  • Packaging: Cut to length (m)
  • Conductor cross-section: 150 mm²
  • Nominal outer diameter: 23.85 mm



SIWO-KUL B20 1x185 6,6/7,2 kV GY

Nexans ref. 10549502

  • Packaging: Cut to length (m)
  • Conductor cross-section: 185 mm²
  • Nominal outer diameter: 25.85 mm



SIWO-KUL B20 1x240 6,6/7,2 kV GY

Nexans ref. 10503822

  • Packaging: Cut to length (m)
  • Conductor cross-section: 240 mm²
  • Nominal outer diameter: 28.25 mm



SIWO-KUL B20 1x300 6,6/7,2 kV GY

Nexans ref. 10503823

  • Packaging: Cut to length (m)
  • Conductor cross-section: 300 mm²
  • Nominal outer diameter: 31.85 mm



Description

Description

Standards

  • Product
    CSA C22.2 N° 210-05; IEC 60228; UL 758
  • Installation
    IEC 60092
  • Test
    IEC 60331; IEC 60332-1; IEC 60332-3-22; IEC 60332-3-24; IEC 60754-1; IEC 60754-2; IEC 61034

Application

  • Connection of rotating machines windings, like motors, alternators, generators.
  • Cabling of static devices, like power converters, motor drives, power cabinets, transformers
  • Adapted for wind turbines, marine and offshore, rollingstock, photovoltaic, energy storage systems

Construction

  • Flexible tin-plated copper conductor class 5 as per IEC 60228, other class in option
  • Co-extruded semiconductor layer
  • High grade silicon rubber insulation
  • Mechnical protection by silicone coated synthetic fibre braid
  • Co-extruded semi-conductor reduces partial discharge and increases cable life

Properties

  • Operating temperature in continuous mode -55°C to +180°C
  • Resistance to thermal shocks, UV and oils
  • Compatibility to VPI impregnation resins



  • Type approval certificate : Lloyds Register LR21139304TA
  • Type approval certificate : BV Marine & Offshore 09555/D0 BV, file : ACE 01/723/01
  • Certificate of compliance : UL758 AWM Style 3642, file : AVLV2.E45073
  • Certificate of compliance : CSA Standard C22.2 N°210-15, file : LL 36040 AWM

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Halogen free
Yes

Electrical characteristics

Electrical characteristics

Operating voltage
6.6 kV

Usage characteristics

Usage characteristics

Operating temperature, range
-55 ... 180 °C
Chemical resistance
Good
Oil resistance
Yes
Flame retardant
IEC 60332-1
Fire retardant
IEC 60332-3
Fire resistant
IEC 60331
Gases corrosivity
IEC 60754-1; IEC 60754-2
Smoke density
IEC 61034
