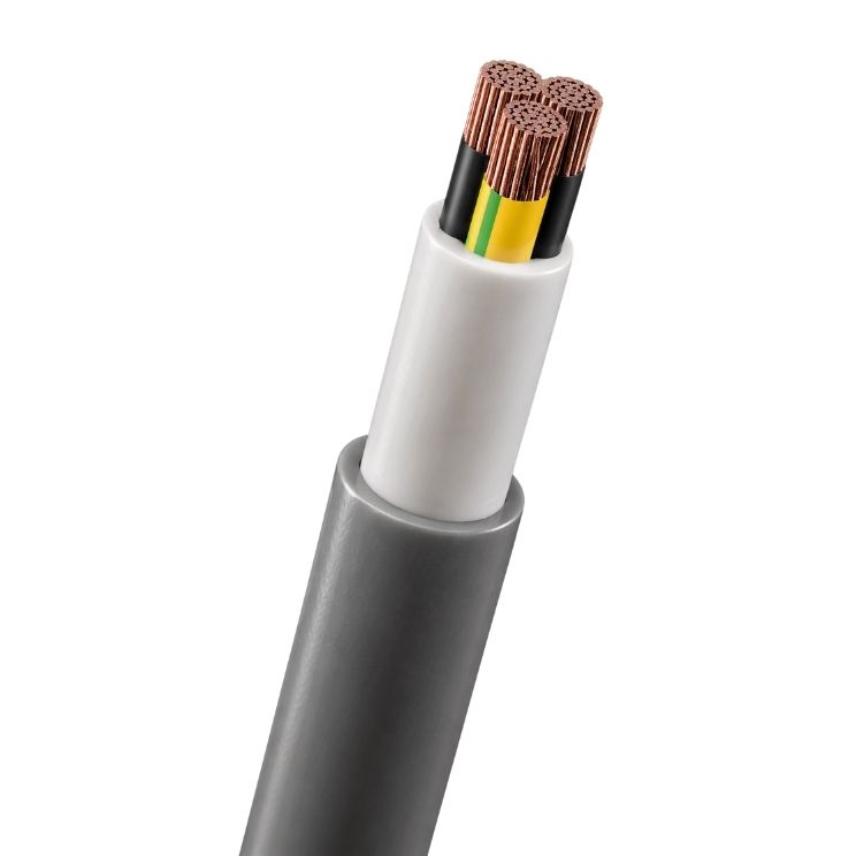

FE0-D 3X1.5 2LPE SP500
FE0-D 3X1.5 2LPE SP500
Unarmoured, single - and multi-conductors safety building cables Noflamm
Read more- Nexans ref. : 10559609
Description
Description
Standards
-
ProductEN 50575; EN 60529; IEC 60228
-
TestEN 60332-1-2; IEC 60754-2; IEC 61034
-
NationalSEV TP 20B/3C-d
Applications
Halogen-free without armouring installation cable for installation in buildings and technical rooms. Up to two months immersion (AD7). Halogen-free provides a higher level of safety than PVC TT cables.
Construction
- Conductor Wire (class 1) of 1.5 - 6mm2 and strands (class 2) of 10 - 630mm2
- Polyethylene insulation
- Filling with
- HFFR jacket
Properties
- CPR Class Dca s2, d2, a2
- Water resistant. Up to two months immersion (AD7)
- Halogen-free allows a higher level of safety than PVC TT cables
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Solid class 1
Conductor material
Copper
Conductor shape
Single wired
Halogen free
Yes
Insulation
PE
Outer sheath
HFFR (Halogen Free Flame Retardant)
Sheath colour
Grey
With Green/Yellow core
No
With smaller neutral conductor
No
Dimensional characteristics
Dimensional characteristics
Number of cores
3
Conductor cross-section
1.5 mm²
Approximate weight
89 kg/km
Neutral conductor section (when smaller)
- mm²
Nominal outer diameter
7.05 mm
Electrical characteristics
Electrical characteristics
Maximum operating voltage
1000 V
Rated Voltage Uo/U (Um)
0,6/1 kV
Test voltage
3500 V
Usage characteristics
Usage characteristics
Flame retardant
IEC 60332-1-2
Maximum operating temperature
70 °C
Minimum operating temperature
-20 °C
RoHS conform
RoHS 2011/65/EU
Smoke density
EN 50399
Water proof
AD7
Weather resistance
Restricted
Resources
Resources
Documentation
HFFR VS PVC
mp4 — 16.0 MB
Selling & delivery Information
Other references upon request.
Declaration of Performance
- Declaration of Performance n� : 1000272-CHCD
- Certification Date : 3/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 2659
- Declared performance : Dca-s2,d2,a2
