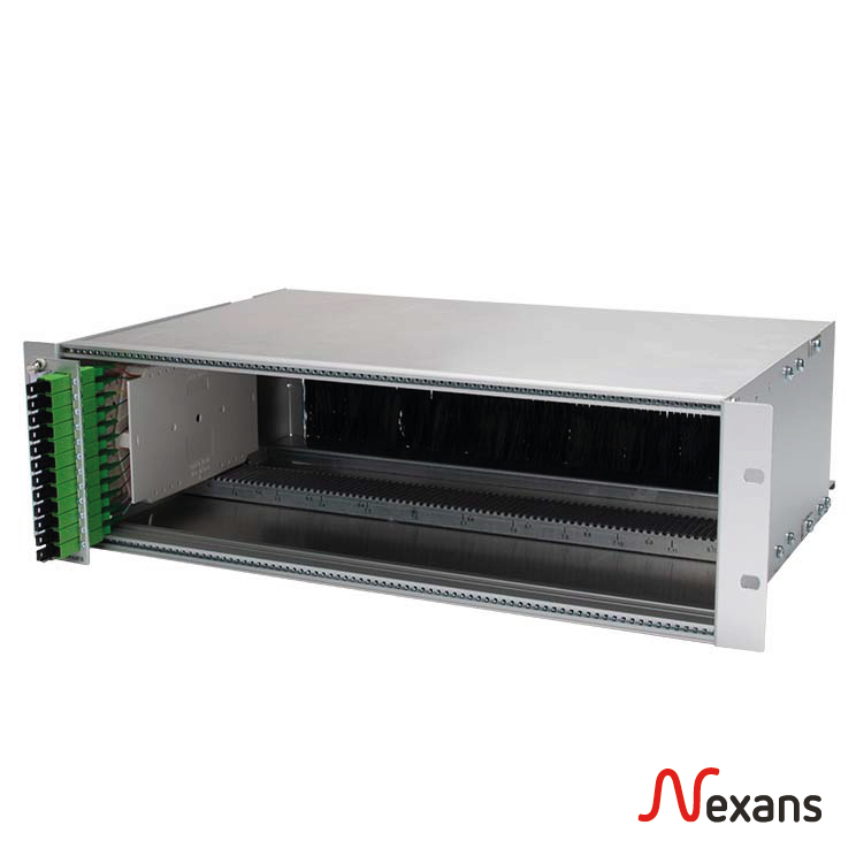

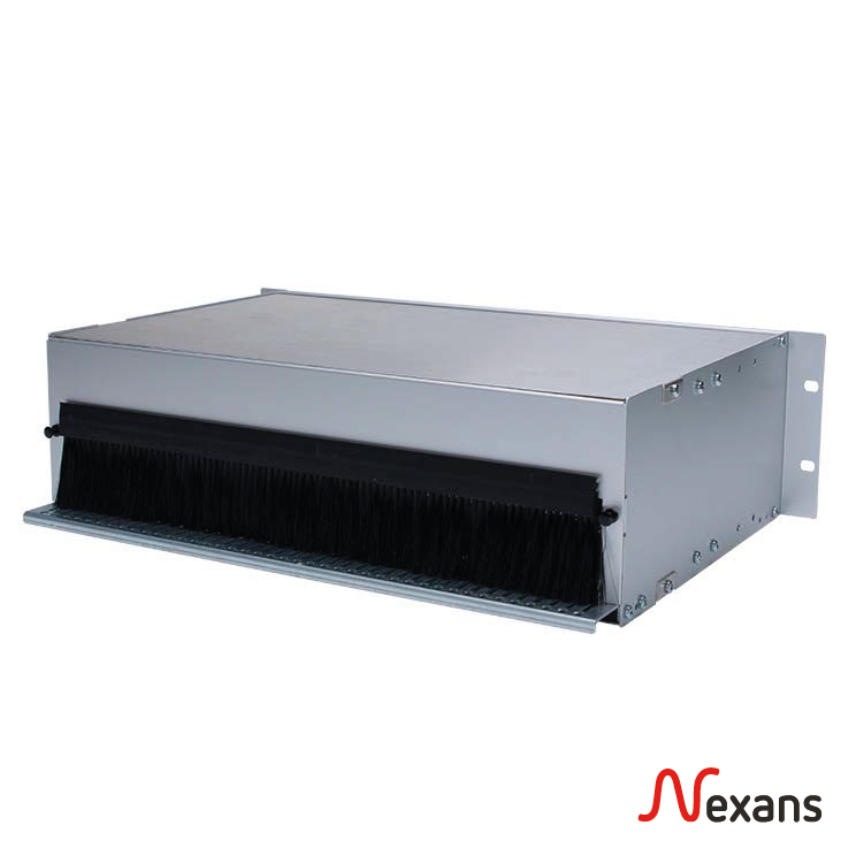

Nexans 19'' 3U - Modular distribution frame
Nexans 19'' 3U - Modular distribution frame
19'' - 3U - Modular distribution frame
Read moreDescription
Description
Applications
- Insertion of pre-cabled modules
- 19" rack 3U for mounting in cabinet
Key features
- Max. 144 connector connecting points
- Max. 12 modules with front or rear side output
- Max. 12 connector connecting points per module
- Movable modules, making the access to the pigtails easy
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Dimensional standards
19"
Heightunit
3 U
Usage characteristics
Usage characteristics
Component function
Distribution frame
Resources
Resources
Selling & delivery Information
| 19'' - 3U Modular panel | 10157952 |
| Pre-assembled module 3U, 7TE with connectors and pigtails 12 FSN 9/125 E2000 APC | 10157722 |
| 3U - 7TE Blind Plate | 10157924 |
