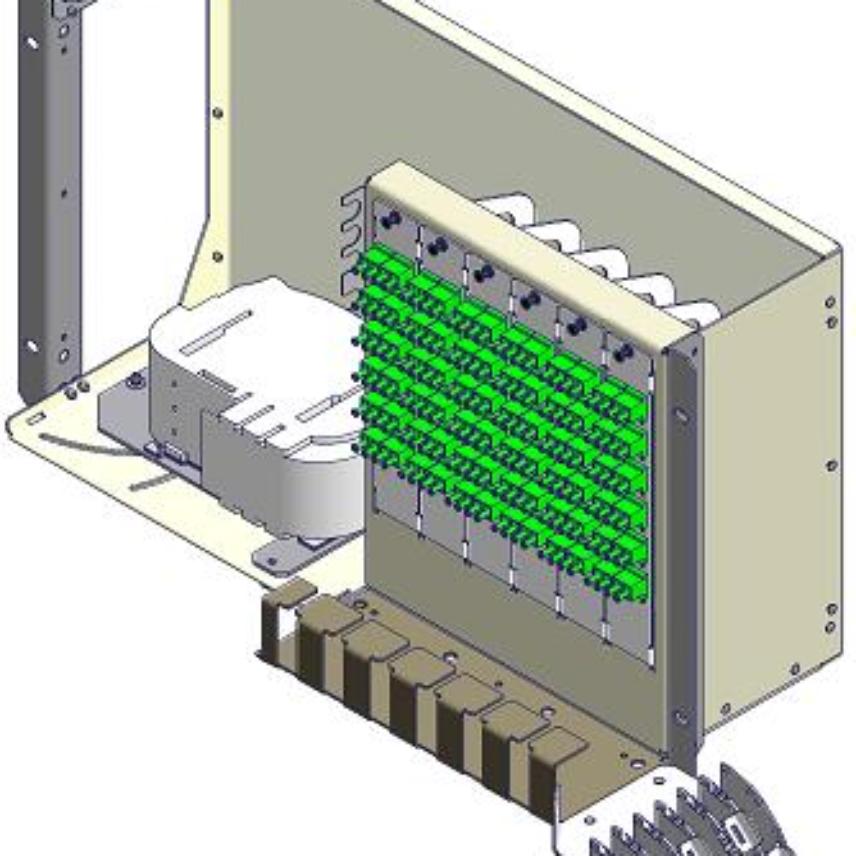

Connection module OPTEASY Pack 144 19''

Main applications

• Modular 6U cable head for standard 19’’ frame - width 800 or 900 mm, depth 300 mm
• Optical fibres distribution on adapters through weld pigtails
• Cable splicing and branching
• Single Fibre Management, in Fiber’art splicing modules
• Compatible with micro-bundles cables
• FTTH P2P (Point to Point)
• FTTH G-PON, splitters integration thanks extension modules

Key features

• Max. 144 SFF (Small Form Factor) adapters on front plate. (See table)
• Max. 72 SC or E2000 adapters on front plate. (See table)
• Max. 288 fibres splices in  4 Fiber’art splicing modules
• Revolving front plates to facilitate access to connectors
• "OPTEASY Split " modules on LCAPC integration
• "Fiber’art to split " modules integration
• Integrated gutter to organize and structure patchcords cabling
• Adjustable gutter in depth
• Protection cover for splicing zone
• All installation made with  front access without putting down the module
• Comfortable space for the assembly work
• Dimensions: Rack 6U depth without all 223 mm
