Nexans OPTOPUS Micro and Micro MTP for switch

Description

Description

Standards

  • Product
    Nexans specification

Key points

Optopus Micro :

Preferred usage

  • Cabling for FTTH, FTTB and FTTC
  • P2P link in PONBOX
  • Link between POP (NRO) and switch (activ components)
  • Link for data center
  • Compact and economic alternative to break out cable
  • Installation in cable tray or cable ladder
  • Link inter OMDF in POPs (NRO), alternative to patchcords
  •

    Key points

  • Economic solution for link from 5 to 500 m with 12,16 or 24 fibers
  • Connector type: SCPC, SCAPC, LCPC, LCAPC, E2000
  • Fiber type FSN 9/125 G657A for FTTX & OM3 or OM4 for data centers
  • Pre terminated compact solution delivered with measure protocol
  • Quick and easy installation
  • Easy working box conditionning to facilitate the installation
  • Protection for connectors to avoid damage during installation
  • Compact fanout
  • Link P2P in Ponbox with ½ optopus micro
  • The use of ½ OPTOPUS allows OPTOPUS for easy installation in tubes, without specific tools
  •

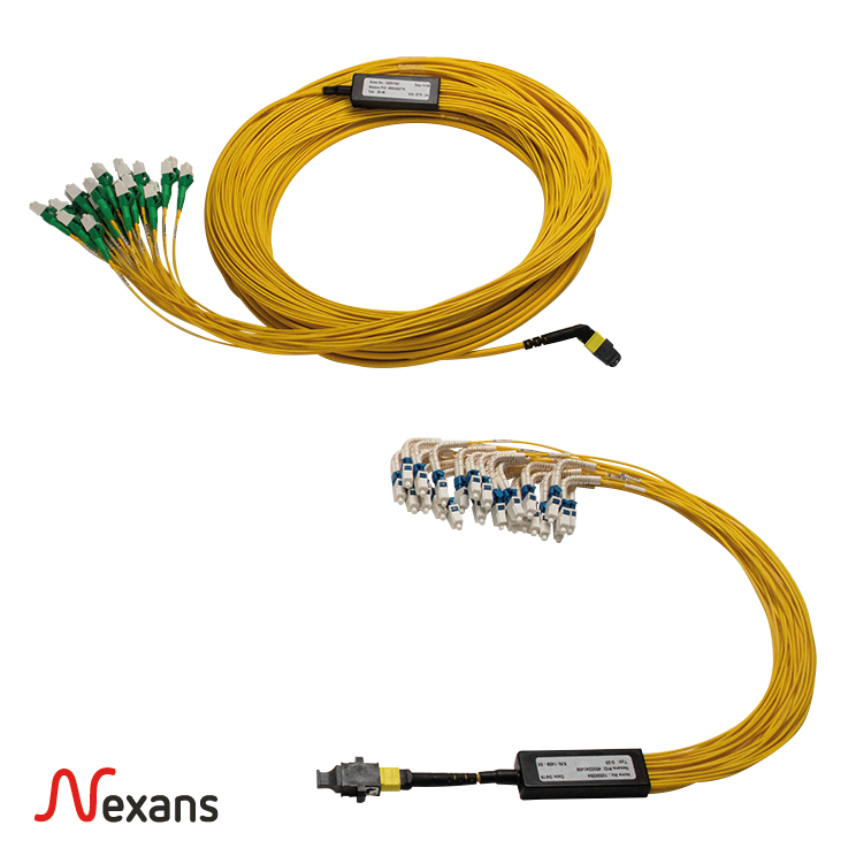

    Optopus Micro MTP for switch :

    Preferred usage

  • Link between activ switchs and FMDF
  • Link for data center
  •

    Key points

  • Economical solution for switchs replacements
  • Connector type: SCPC, SCAPC, LCPC, LCAPC, E2000
  • Fiber type: FSN 9/125 G657A  for FTTx & OM3 or OM4 for data centers
  • Pre-assembled, compact solution
  • Simple and quick installation
  • Compact fanout
  • MTP connectors ensure quick connection between passive and active components
  • The optopus on the switch side is manufactured taking into account the amount of outpouts and the distance between each of  them
  • When changing switchs, the passiv part can remain connected, avoiding potential mistakes when re-connecting

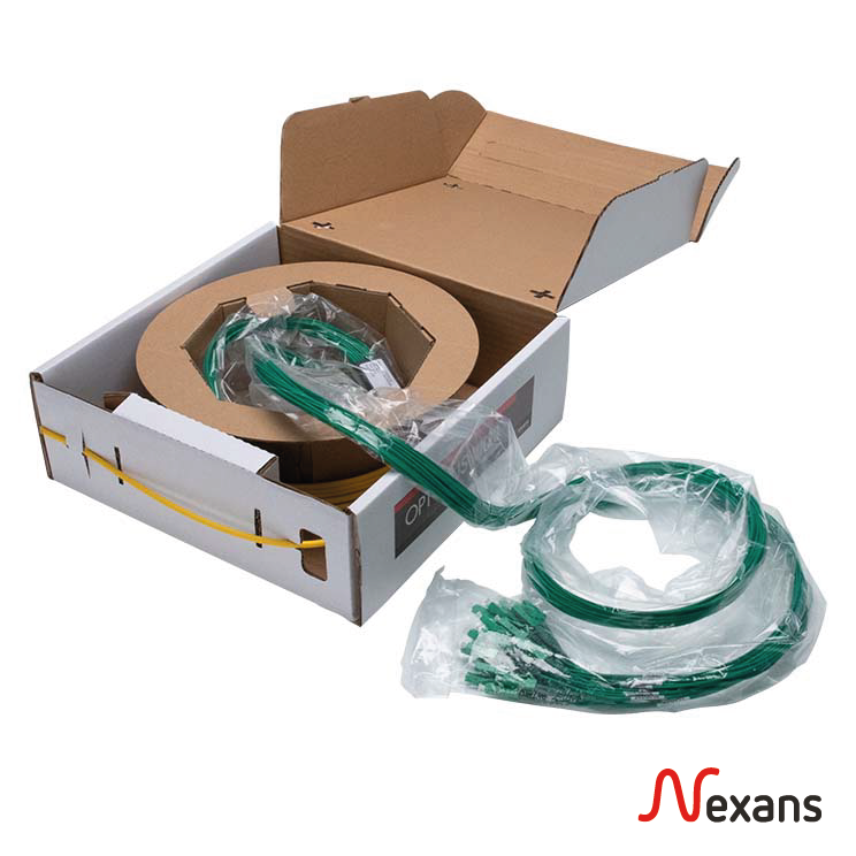

Conditioning

Box size : 270mm x 270mm x 90mm







Application

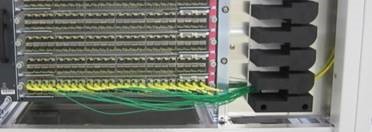

Connecting of Cisco switchs for FTTH with 90° connectors

Connecting of Cisco switches for FTTH with 90° connectors

Order

Please contact us for the configuration of your Optopus (fibre type, connector type, cable length, etc…).

sales.ch@nexans.com

Characteristics

Characteristics

Dimensional characteristics

Dimensional characteristics

Outer Diameter
4.2 mm

Mechanical characteristics

Mechanical characteristics

Maximum admissible traction load (Tm)
40 daN

Usage characteristics

Usage characteristics

Operating temperature, range
-20 ... 60 °C
Storage temperature, range
-20 ... 60 °C
