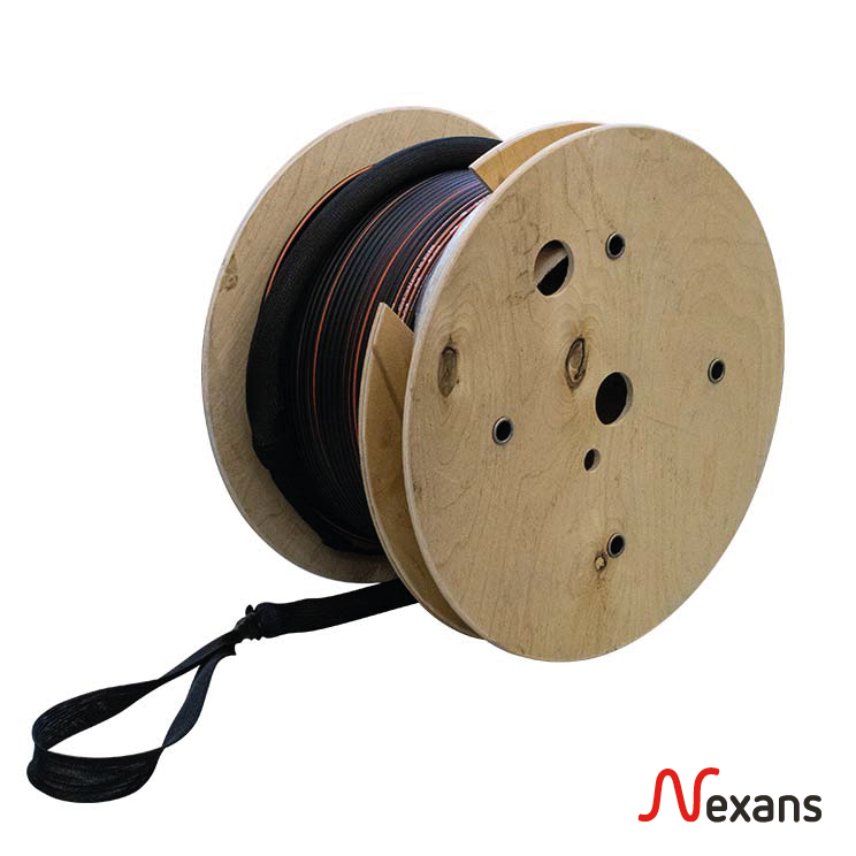

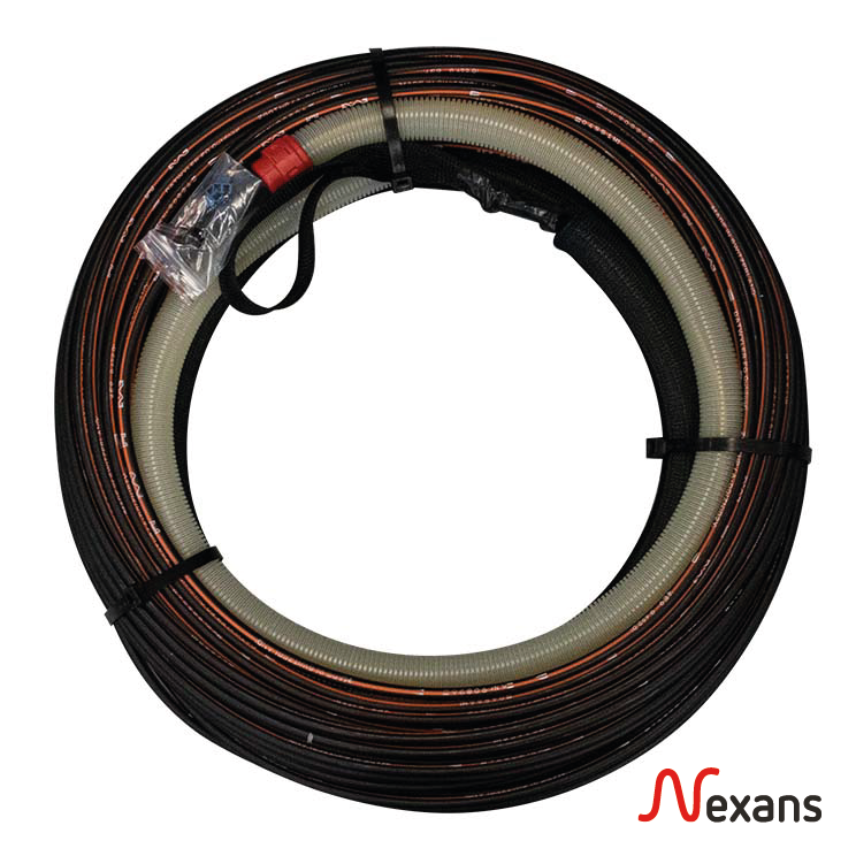

Nexans OPTOPUS outdoor

Preferred usage

The pre-assembled OPTOPUS Outdoor can be used both indoors and outdoors. The connector is assembled using a robust Fanout which ensures a high tensile load during installation. The cable Fanout is available from 2 to 24 fibres with connector types E2000™, FCPC, LC, SC, ST. It is manufactured in the required length.

• Optical networking without specialized skills
• Building cabling
• Cabling between buildings

Key points

• Economic solution for link from 20 to 600m with 2, 4, 6, 8, 12 and 24 fibers
• Pre terminated cable with optical connectors at both ends with numbering
• The connectors are protected at both ends
• Cables can be manufactured by steps of 5m
• The connectors are mounted in pairs by default and supplied with a protective tube and a pulling aid
• The measurement protocol is supplied on request
• All cables are fire retardant and rodents repellent
• On demand a 250 daN version is available

Application

• Installation on cable ladders
• Manual pulling without specific tools
• Immediate reuse in case of network modification
