Nexans PLC Splitters
Description
Description
Applications
The planar optical coupler range is designed for broadcast networks and particularly for PON-type optical networks to passively share Central Office (CO) operator services to multiple subscribers
These products are ultra-compact, high reliability, high bandwidth and cover the full range of commonly used wavelengths, making them a cost-effective solution for broadcasting optical signals
The range of couplers is divided into two main families:
- Standard and mini-module couplers which are characterised by the IN input and OUT outputs on opposite sides. They are integrated into a cassette
- Module couplers which have the IN input and OUT outputs on the same side. They are fixed by screwing
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Applicables standards
- Telecordia GR-1209-CORE
- TelecordiaGR-1221-CORE
- Fiber is G657A
- ROHS
Features
- Low Insertion loss
- Low PDL (Polarization Dependent Loss)
- Compact Design
- High Reliability and Stability
Resources
Resources
Selling & delivery Information

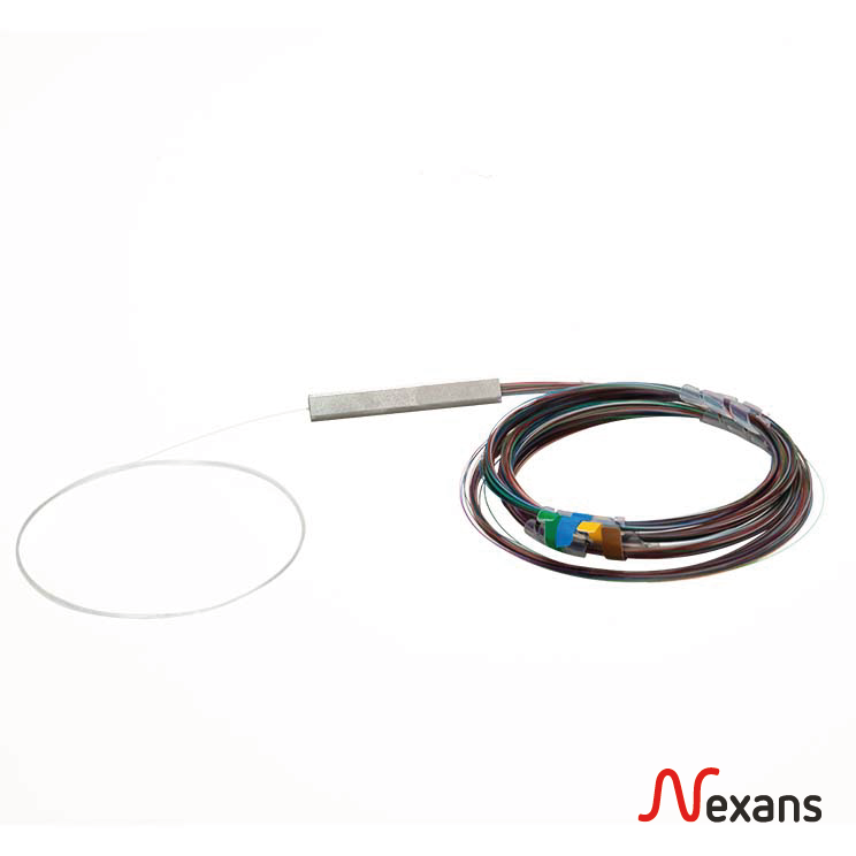

Type: Bare
- Port configuration: 1x 2, 1x 4, 1x 8, 1x 16, 1x 32 et 1x 64
- Input fiber type: 250 µm bare fiber, 900 µm loose tube
- Input fiber length: 1, 2, 3, 5m
- Input connector type: None or LCAPC
- Output fiber type: 250 µm bare fiber, 900 µm loose tube or ribbon
- Output fiber length: 1, 2, 3, 5 m
- Output connector : none or LCAPC
- Return loss preparation for unused fibers when no connectors (all or none)

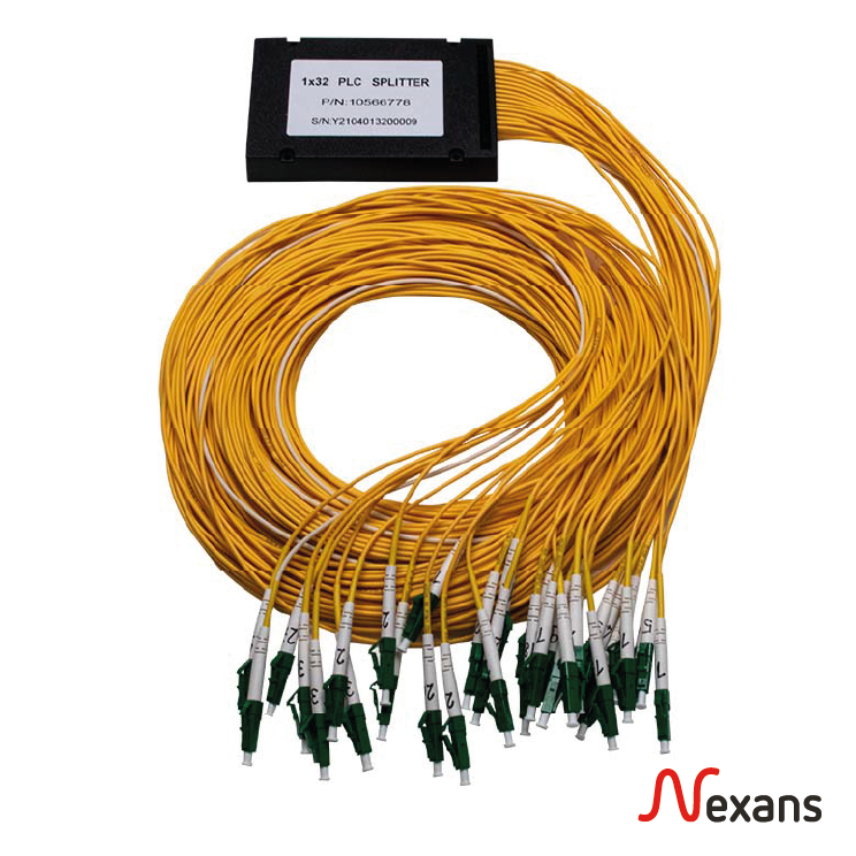

Type: Module (Standard or mini)
- Port configuration: 1x 2, 1x 4, 1x 8, 1x 16, 1x 32 and 1x 64
- Input fiber type: 900 µm loose tube , 900 µm tight butter, 2 .0 mm tight fiber
- Input fiber length: 1, 2 , 3, 5 m
- Output fiber type: 900 µm loose tube, 900 µm tight butter, 2.0 mm tight fiber
- Output fiber length: 1, 2 , 3, 5 m
