Simple housing junction N.1
Description
Description
Standards
-
ProductNexans specification
Preferred usage
- Junction for shielded telecom cables (FMK) with paper or PE insulation.
- For harsh environnement ( mechanical and thermal constraint)
- Can be mounted in a chamber in a cable way or direct buried.
- Can be used in case of steep pathways.
- Vibration proof installation.
- Installation in tunnel or water duct or railways and freeways.
Key points
- Great mechanical resistance (radial and axial).
- Great resistance to flame.
- No specifics tools.
- Unlimited storage.

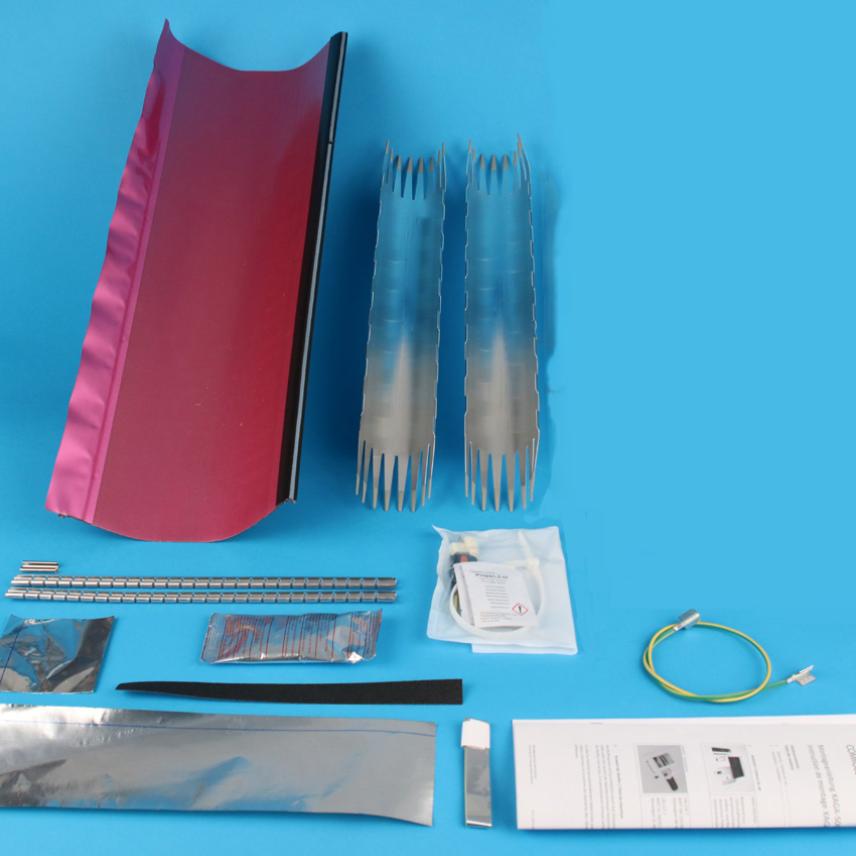

- Complet kit and instructions for installation.
Construction particularities
INNER HOUSING
- Splices protection with aluminium shield.
- Heat shrink housing glass fiber reinforced.
Characteristics
Heat shrink junction with simple housing for shielded cables.
| Splice maximum diameter | 75mm |
| Under shield minimum cable diameter | 15mm |
| Outside minimum diameter | 25mm |
| Splice length | 500mm |
| Maximum capacity | 15 x 4/1.0 |
Accessories
|
Mounting kit for junction Nexans ref.: 10157125 |
##image:97201## |
|
Wall bracket for junction Nexans ref.: 10159896 |
##image:97202## |
