FILORADIO COAXIAL CABLES (HF-50, HF-75)
FILORADIO COAXIAL CABLES (HF-50, HF-75)
FILORADIO Transport and connection cable 50 Ohm and 75 Ohm
Read moreFILORADIO HF-50 - 1/2" - CUN
Nexans ref. 10164134
- Packaging: Cut to length (m)
- Central conductor diameter: 4.05 mm
- Diameter over insulation: 11.5 mm
FILORADIO HF-50 - 7/8" - CUN
Nexans ref. 10152533
- Packaging: Cut to length (m)
- Central conductor diameter: 9.10 mm
- Diameter over insulation: 23.5 mm
FILORADIO HF-75 - 1/2" - CUN
Nexans ref. 10167000
- Packaging: Cut to length (m)
- Central conductor diameter: 2.77 mm
- Diameter over insulation: 11.5 mm
FILORADIO HF-75 - 7/8" - CUN
Nexans ref. 10167002
- Packaging: Cut to length (m)
- Central conductor diameter: 5.70 mm
- Diameter over insulation: 23.5 mm
FILORADIO HF-75 - 7/8 - ALN
Nexans ref. 10167003
- Packaging: Cut to length (m)
- Central conductor diameter: 5.70 mm
- Diameter over insulation: 23.5 mm
FILORADIO HF.I-50 - 7/8" - CUN NEW
Nexans ref. 10501739
- Packaging: Cut to length (m)
- Central conductor diameter: 9.10 mm
- Diameter over insulation: 23.5 mm
Description
Description
Standards
-
ProductNexans specification
Preferential use
- Transport and connection cable for radiocommunication in tunnels
- Road and railway tunnels
Key-points
- Very low losses
- Very strong construction
- Conform to :
- CEI 60332-1 flame retardant - CEI 60332-3/C self-extinguishing - CEI 60754-1 halogenfree - CEI 60754-2 no corrosive gaz emission - CEI 61034 low smoke emission

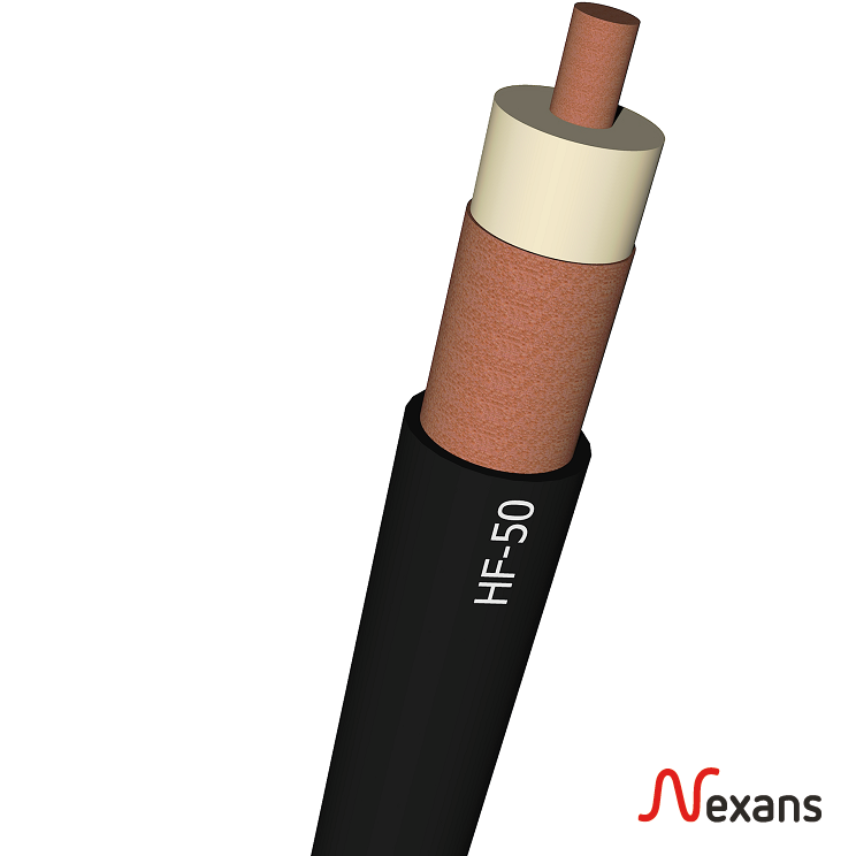

Cable construction
- Inner conductor of copper or copper clad aluminum wire
- Foamed polyethylen dielectric
- Outer conductor with copper or aluminium tape
- HFFR polyethylen outer sheath and metering
Other versions on request
- According to specific needs
Value list FILORADIO HF-50, HF-75
