XKDT-Fg Armierte Dreileiterkabel mit XLPE Isolation

Halogenfree three-core cables with cross-linked PE insulation (XLPE), copper-wire screens and galvanized steel flat-wire armour with reinforcement helix. Suitable for laying in declivities, pulling in concrete ducts or laying at any place where a mechanical protection of the cable is needed.


Applications

• Underground distribution networks
• Laying in tubes and direct buried
• Arises in electrical substations


Key points

• Nominal voltage 10 kV / 20 kV / 30 kV
• Lead sections 50 to 240 mm2

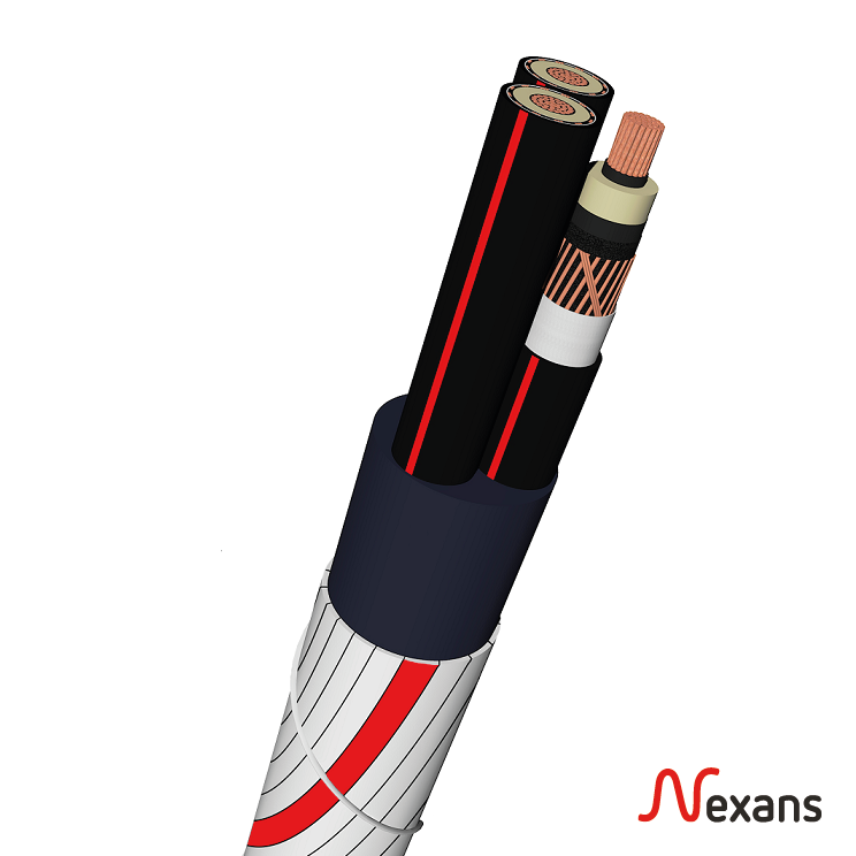

Construction three-core cables

• Assembly of 3 XLPE insulated single core cables
• Extruded filler
• Galvanized steel flat-wire armour
• Two reinforcement helix


Construction single core cables

• Copper conductor
• Inner Semiconductor
• Cross-linkend PE insulation (XLPE)
• Outer semi-conductor
• Semi-conductive swelling tape
• Copper wire screen
• Swelling tape
• Outer PE sheath
