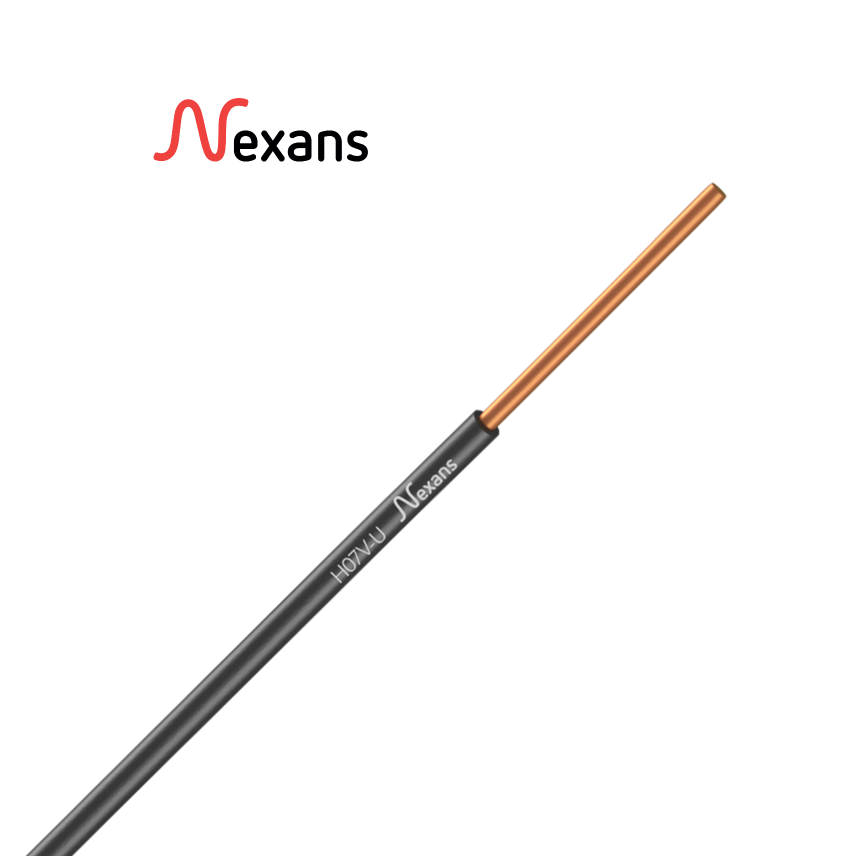

Nexans H07V-U PASSEO 1X1.5 BLACK C100m
Nexans H07V-U PASSEO 1X1.5 BLACK C100m
H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ..
Mehr lesen- Nexans ref. : 10269978
- Land ref. : 10520998
- EAN : 3427500030950
Beschreibung
Beschreibung
Normen
-
ProduktEN 50525-2-31; HD 21.3; IEC 60227-1; NF C32-201/3
Application
Nexans H07V-U conductors are used for fixed protected installations : i.e. ligths or control gear (from offices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC . ...
Design
- Conductor
Bare copper class 1 - Insulation
PVC
Différent colors.
Installation
Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, H07V-U is made to facilitate processing while pulling in.
Permissible current and voltage drop are given
For conductor laid alone in insulating tube on a wall Temperature = 30°C. Permanent operation
If conditions are different, apply correction factors from NF C 15-100 standard or other equivalent national standard.
Voltage drop
Calculated with Cos phi = 0,8
Marking
S.Y + USE «har» H07V-U factory number

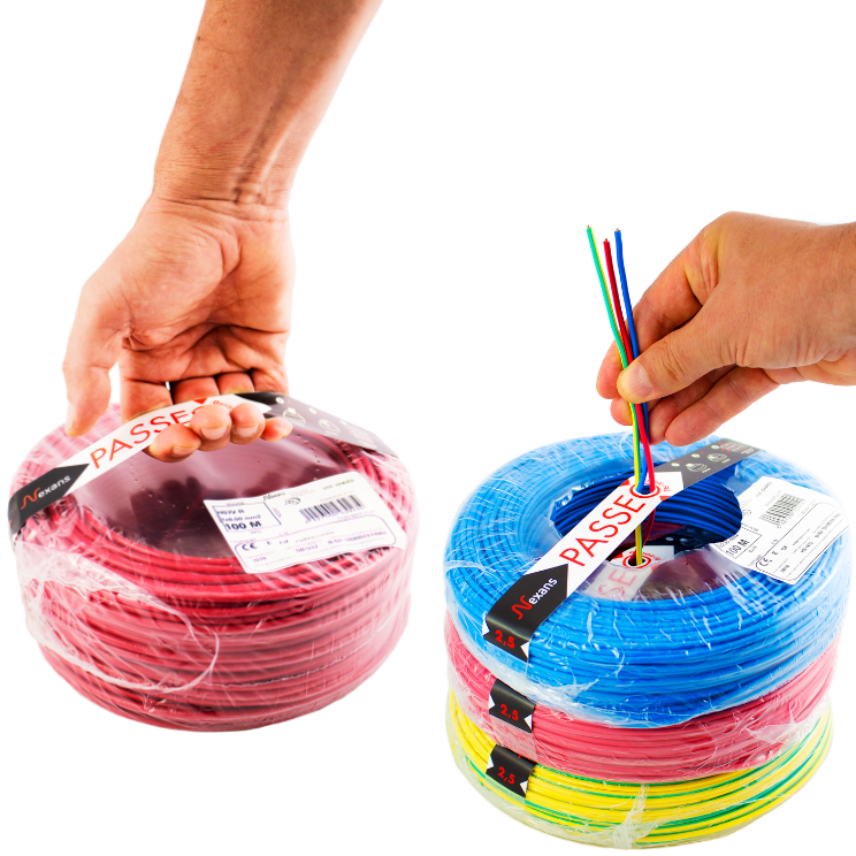

Gammes et couleurs disponibles pour PASSEO
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Abmessungen
Abmessungen
Elektrische Eigenschaften
Elektrische Eigenschaften
Mechanische Eigenschaften
Mechanische Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Dokumentation
Leistungserklärung
- Leistungserklärung Nr (DoP) : 1000230-FRAU
- Datum der Zertifizierung : 29.01.18
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Benachrichtigte Stelle : NB 1812
- Erklärte Leistung : Eca
